KMP 算法详解

例题:洛谷P3375

Posted by TH911 on November 18, 2024

例题链接

什么是 KMP 算法

命名

首先,你要了解“KMP”的命名由来。

其实这仅仅是因为 KMP 算法由三个叫 Donald E. Knuth、James H. Morris, Jr. 和 Vaughan R. Pratt 的人共同提出而已。

作用

参考例题(洛谷P3375)

在一个字符串 $s1$(通常称之为“文本串”)中查找另一个字符串 $s2$(通常称之为“模式串”)的出现次数和出现位置。

(以下 $n,m$ 分别为 $s1,s2$ 的长度)

朴素算法

最优时间复杂度:$\mathcal O\left(n+m\right)$。

最坏时间复杂度:$\mathcal O(nm)$。

遍历 $s$,然后同时如果 $s_1[i]=s_2[i]$ 就继续判断 $s_1[i+1]=s_2[i+1],s_1[i+2]=s_2[i+2],\cdots,s_1[i+m-1]=s_2[m]$。在中途如果判断出 $s_1[j]\ne s_2[j]$,就跳出循环 $i$ 继续遍历。

朴素代码代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
//#include<bits/stdc++.h>
#include<algorithm>
#include<iostream>
#include<cstring>
#include<iomanip>
#include<cstdio>
#include<string>
#include<vector>
#include<cmath>
#include<ctime>
#include<deque>
#include<queue>
#include<stack>
#include<list>
using namespace std;
const int N=1e6;
char s1[N+1],s2[N+1];
int n,m;
int main(){
	/*freopen("test.in","r",stdin);
	freopen("test.out","w",stdout);*/

	scanf("%s%s",s1,s2);
	n=strlen(s1),m=strlen(s2);
	int ans=0;
	for(int i=0;i<n;i++){
		for(int j=0;j<m;j++){
			if(s1[i+j]!=s2[j])break;
			if(j==m-1){
                //匹配到了
            }
		}
	}printf("%d\n",ans);

	/*fclose(stdin);
	fclose(stdout);*/
	return 0;
}

KMP 算法

策略

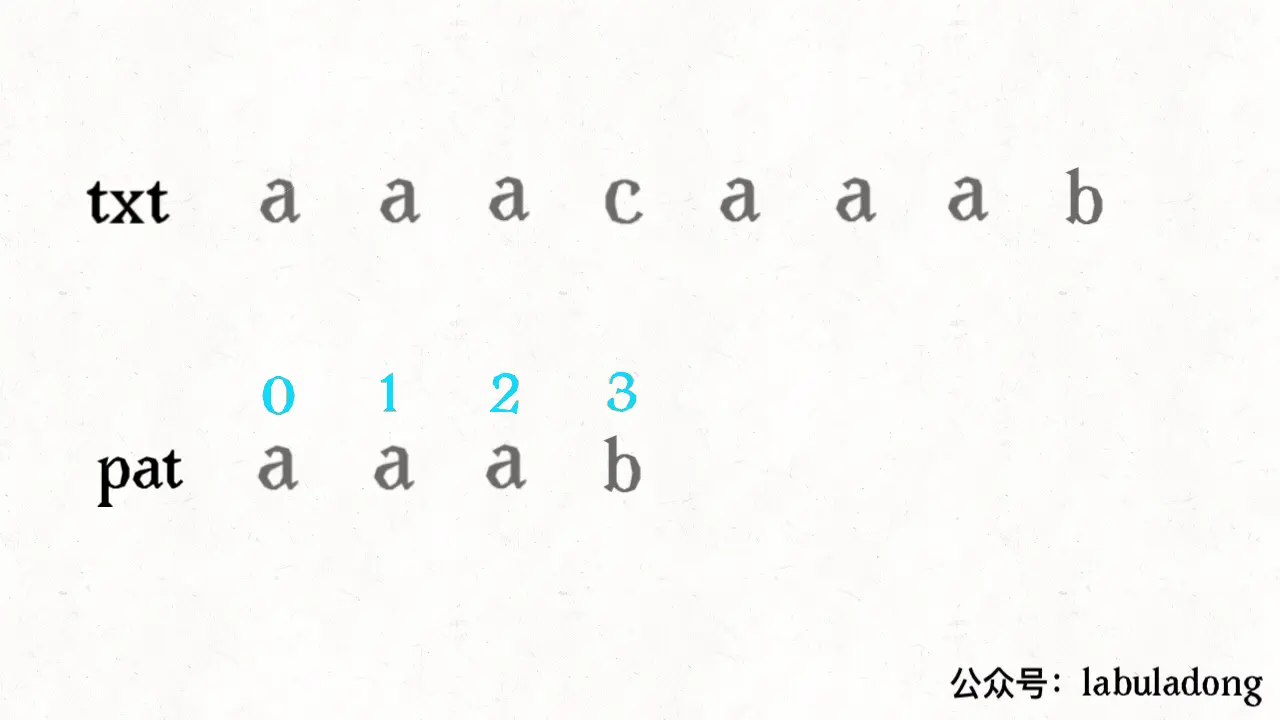

先看看朴素算法的匹配策略:

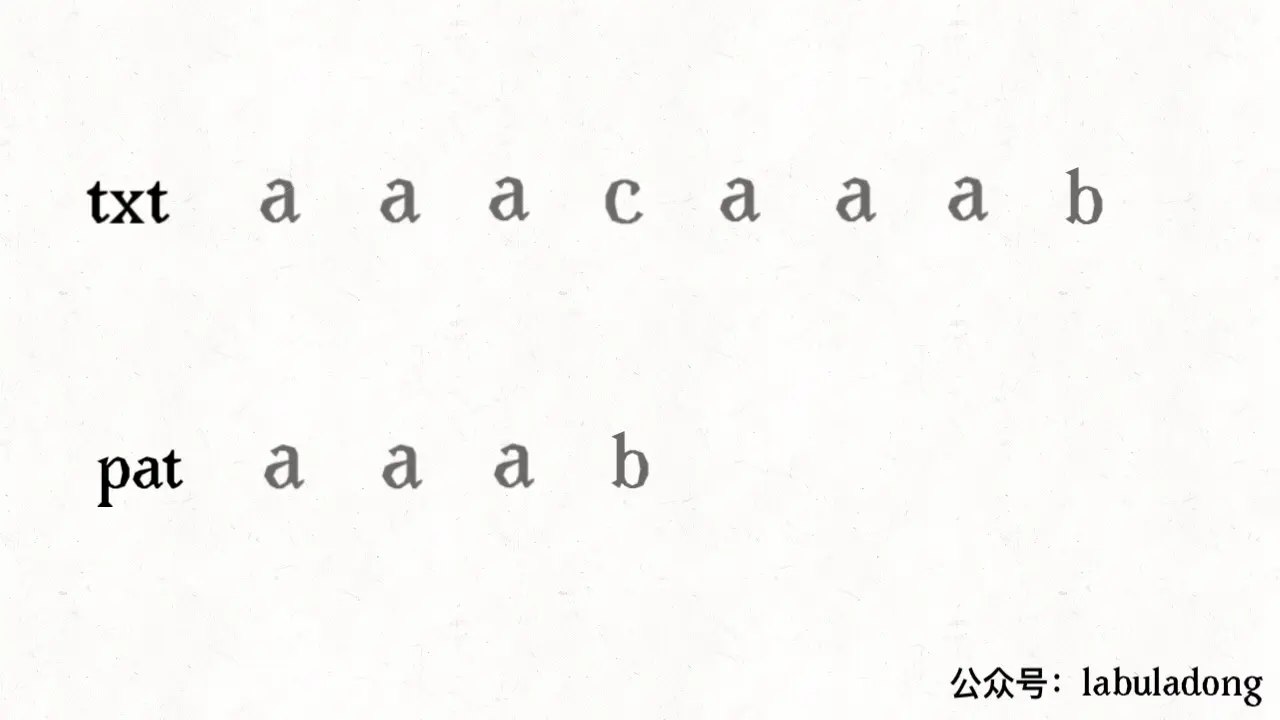

再看看 KMP 算法的匹配策略:

图片来源:见参考链接

可以发现,KMP 算法在失配时“将模式串移到了适配位置的后方”。

显然,我们不可能真的去这么做,因为太费时了。

因此我们考虑使用两个指针 $i,j$,分别指向文本串 $s_1$ 和模式串 $s_2$。

求出 $pre$ 后匹配

使 $i$ 遍历 $[1,n]$,$j$ 如果能够匹配就增加,否则就挪到另一个位置 $pre_j$。

假设我们已经求出了 $pre_j$,那么 KMP 算法将会变得无比简单。

先上代码:

1
2
3
4
5
6
7
8
pre[0]=-1;
for(int i=0,j=0;i<n;){
    if(j==-1||s1[i]==s2[j])i++,j++;
    else j=pre[j];
    if(j==m){
        //匹配到了
    }
}

其中,$pre_0=-1$ 仅仅是一个特殊值(详见下文)。

现在我们考虑如何求出 $pre_j$,以及怎样的 $pre_j$ 能最大程度上减少重复运算、提高效率。

$pre$ 数组是什么

引入一个概念:border。

定义一个字符串 $s$ 的 border 为 $s$ 的一个非 $s$ 本身的子串 $t$,满足 $t$ 既是 $s$ 的前缀,又是 $s$ 的后缀。(border 可以为空串

那么 $pre_i$ 便是 $s_2[1,i]$ 的最长 border 的长度

为什么?

看个例子:在 $\texttt{CDACDBCD}$ 中匹配 $\texttt{CDBCD}$。

最开始长这样: \(\begin{aligned}&\texttt{CDA}\color{red}\texttt{CD}\color{black}\texttt{BCD}\\ &\texttt{CDB}\color{red}\texttt{CD}\end{aligned}\)。

就会把模式串位移成: \(\begin{aligned}\texttt{CDA}&\color{red}\texttt{CD}\color{black}\texttt{BCD}\\ &\color{red}\texttt{CD}\color{black}\texttt{BCD}\end{aligned}\)。

可以发现:此时会存在公共部分($\color{red}\texttt{CD}$)。

那么我们不难发现,这个公共部分必然是 $s_2[1,i]$ 的一个 border(可以为空串!!)。

那么,为什么要使 border 最长呢?

其实也很简单,就是让公共部分最长(向前跳的尽量少),因为这样能够防止漏掉漏掉可能的匹配

求解 $pre$ 数组

知道了这些,现在开始考虑求出 $pre_i$。

我们直接让 $s_2$ 匹配自己即可。

先放代码:

1
2
3
4
for(int i=0,j=-1;i<m;){
    if(j==-1||s2[i]==s2[j])pre[++i]=++j;
    else j=pre[j];
}

一个明显的事实:$i\geq j$ 恒成立。

由 $pre_j$ 的定义可得,$pre_j\leq j$ 恒成立。

则每次循环中,要么 $i,j$ 同时自增,差值不变,要么 $j$ 减少;因此,$i\geq j$ 恒成立。

因此无需担心不能够进行“自己匹配自己”。

实在不能理解可以手推,毕竟我推了六张草稿纸,大部分都是画例子。。。。。。

然后其实就是一个 $i$ 指针在右边,$j$ 指针在左边,如果 $s_2[i]=s_2[j]$,那么 border 的长度自然增加,否则就是“失配”。

“失配”了,自然就有 $j\leftarrow pre_j$。

最长 border 为空

特殊值 $-1$ 的用途,这种情况 $pre$ 指向第一个字符 $s_2[0]$ 即可。

注意:如果你的字符串下标从 $1$ 开始,特殊值请设置为 $0$

因为在 pre[++i]=++j 中,若是 $j=-1$,则 $pre_{i+1}=0$,但是 $0$ 是一个空值。

例题 AC 代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
//#include<bits/stdc++.h>
#include<algorithm>
#include<iostream>
#include<cstring>
#include<iomanip>
#include<cstdio>
#include<string>
#include<vector>
#include<cmath>
#include<ctime>
#include<deque>
#include<queue>
#include<stack>
#include<list>
using namespace std;
const int N=1e6;
char s1[N+1],s2[N+1];
int n,m,pre[N+1]={-1};
int main(){
	/*freopen("test.in","r",stdin);
	freopen("test.out","w",stdout);*/

	scanf("%s%s",s1,s2);
	n=strlen(s1),m=strlen(s2);
	for(int i=0,j=-1;i<m;){
		if(j==-1||s2[i]==s2[j])pre[++i]=++j;
		else j=pre[j];
	}
	for(int i=0,j=0;i<n;){
		if(j==-1||s1[i]==s2[j])i++,j++;
		else j=pre[j];
		if(j==m)printf("%d\n",i-m+1);
	}
	for(int i=1;i<=m;i++)printf("%d ",pre[i]);
	putchar(10);

	/*fclose(stdin);
	fclose(stdout);*/
	return 0;
}

参考链接

https://zhuanlan.zhihu.com/p/83334559(图片来源)

https://www.cnblogs.com/fswly/p/17959786

https://www.cnblogs.com/zzuuoo666/p/9028287.html
